Low-smoke halogen-free cable material granulator

Offer number:OF2023036755
Brand:lqgj
Weight:33t
Unit:SETS
Minimum order quantity:1
Quantity available:100
Delivery Time:55DYA

Low-smoke halogen-free cable material granulator

Halogen-free cable material granulator

Flame retardant cable material granulator

The low smoke and halogen-free cable material granulator can produce low smoke and halogen-free cable material of PE system and low smoke and halogen-free cable material of EVA system;

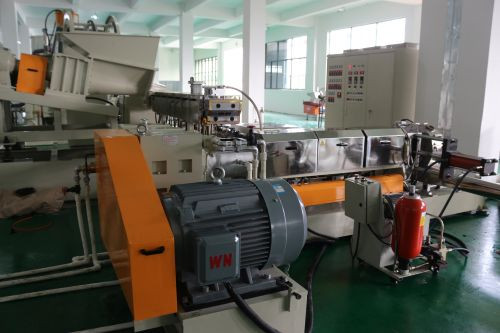

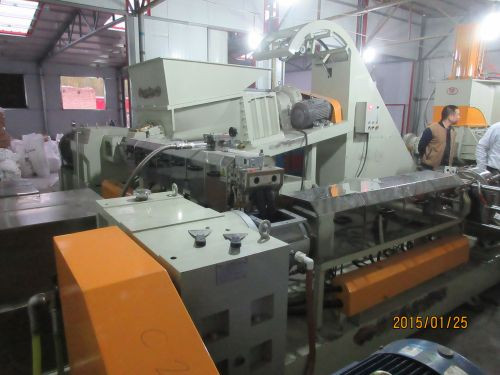

Production process: feeding system - internal mixer - forced feeder - double stage granulator - cooling and conveying - product homogenization - metering and weighing - pallet stacking

Main models: M75/JZSJ65B/150; M110/JZSJ75B/180, etc;

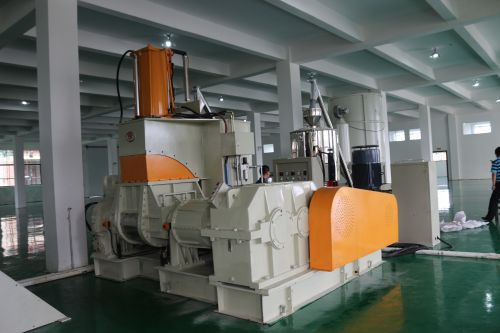

Internal mixer: 75L, 110L, etc

Capacity: 350-600 kg/h;

Length-diameter ratio of twin screw L/D: 36:1-40:1;

Length-diameter ratio of single screw L/D: 9:1

Main motor: 75KW/55KW-132KW/90KW;

Grain cutting method: air cooling, grinding and hot cutting
